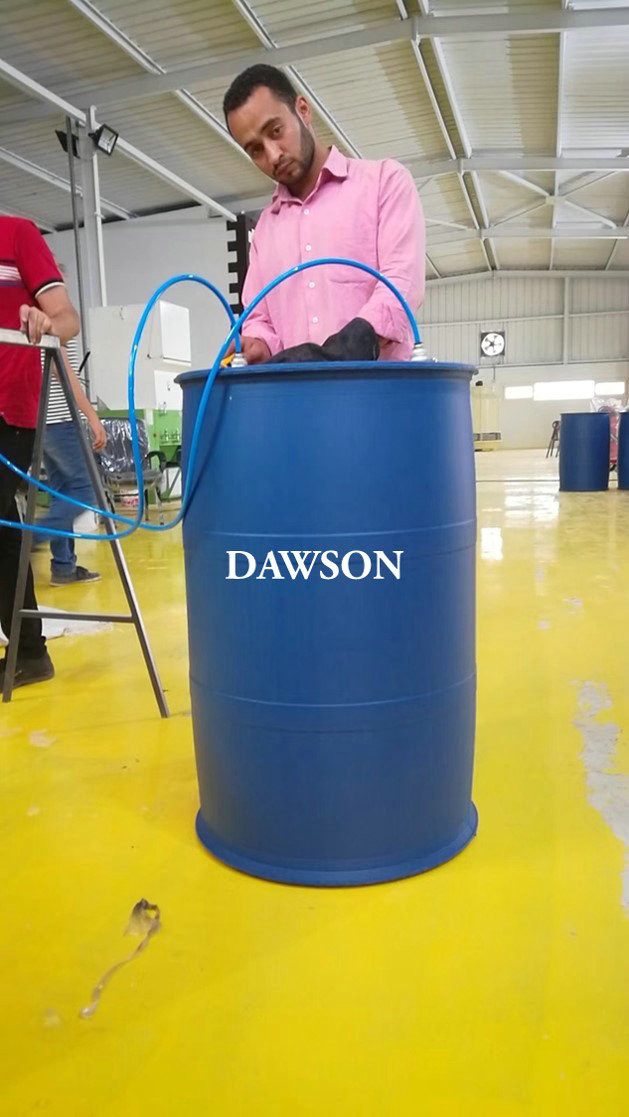

Accumulation Type Blow Molding Machine for 250L HDPE Chemical Drum
Extrusion blow molding machine ABLD120
Product Application
This product is mainly used to pack chemical liquid, medical liquid, liquid food, paintings and grease, etc.
1. Any inquires will be replied in the first time.
2. High quality products, competitive price, fast lead time.
3. Our sales staff will be have a good communication with you ,let you fully understand the situation of our enterprises and products.
4. We will provide high quality overseas service ,our technical staff will be able to provide you with technical support ,for you personally to overseas assembly and test equipment.
5. Our customer service staff will put your feedback to the technical staff in the first time, timely solve your problem.
| Basic parameters | Suitable material | PE |
| Max volume | 250L |
| Output capacity | 20~25 pcs/h |
| Size | 8.6×3.8×5.8 (M) |
| Weight | 38 T |
| system | Specification | Parameters | Note |
| Plasticizion system | Summarize | High efficient low power consumption plasticizion system,transducer control,self-protect function when started at low temperature | |
| Reducer | Hard finishing,High intension,Low noise reducer | |

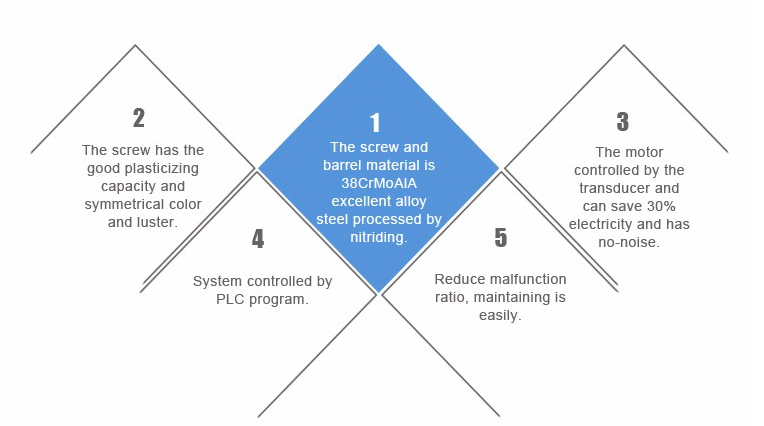

| Screw | ∮120mm,L/D ratio 28, 38CrMoALA | Cooling system available |
| Plasticization | 320~400 Kg/H | HDPE |
| Heating Zone | 5~6 Aluminum Heater | Automatic heating |
| Heating power | 36KW/H | |
| Extrusion Motor | Motor 132kw (380V,50HZ) | |
| Cooling Fan | 5~6zone | Automatic cooling |
| Extrusion system | Summarize | High-grade alloy steel, center feeding | |
| Die head number | 1 | |
| Center distance of die heads | / | |
| Max die mouth | ∮600mm | |
| Heating zone | 6 Stainless steel heating cycle | |
| Clamping system | Summarize | High intension, rigidity, center mold locking, stable mould opening and clamping system | |
| Clamping force | 850~900KN | |
| Template distance | 850~1850mm | |
| Max mould size | 1200X1800mm | |
| Mould material | High grade 50# steel | |
| Electric system | Summarize | PLC+ touch screen(man-machine interface)standard extrusion blow molding machine controlling system(AUTO monitoring, fault-alarm, auto counting ,auxiliary function available) |
Japanese Mitsubishi PLC
system |
| Operate interface | Touch screen, automatic self-diagnose alarm system | |
| Temperature control | Automatic temperature control module | |
| Movement control | Japanese Mitsubishi, Chinese/English
Version | |
| Electric protection | Ampere overload, electric short circuit self-protection function | |
| Hydraulic system | Summarize | Multiple function hydraulic integrated block Proportional control, high efficient | |
| Oil pump motor | Three phase asynchronous motor (380V/220V,50/60HZ) 22kw | |
| Oil pump | Imported double pump | |
| Valves | Imported oil pump valves and connections | |
| Oil pipes | Double layer overpressure resistant | |
| System pressure | 60Kg/cm² | |
| Cooling system | Separate water cooling cycle, oil cooler cooling system | |
| Pneumatic system | Summarize | Taiwan AIRTAC pneumatic system | |
| Air pressure | 1Mpa | |
| Air displacement | 1.8M3/min | |
| Electromagnetic valve | AIRTAC | |
| Cooling system | Summarize | Separate cooling system of mould, barrel and oil system | |
| Cooling medium | Water | |
| Water flow | 18t/h | |
| Water pressure | 0.3-0.6MPa | |
