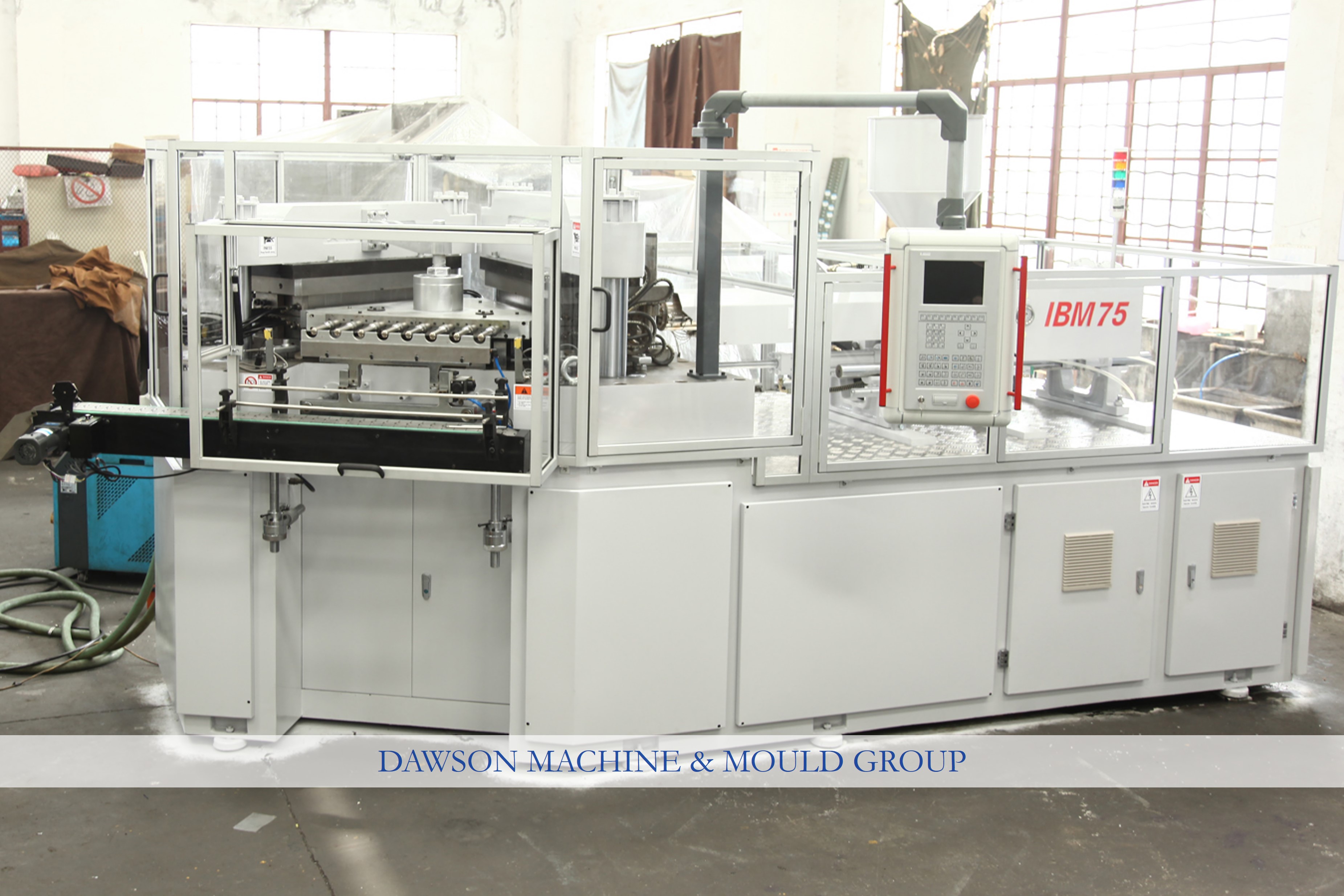

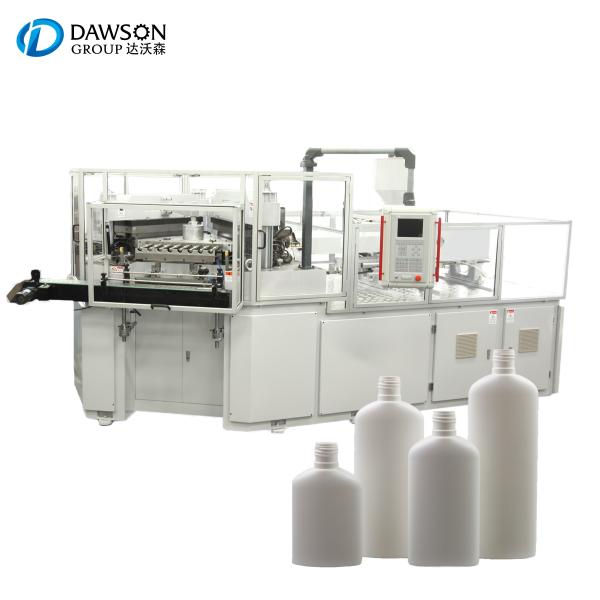

Small Chemical Bottle Making Injection Blow Molding Machine

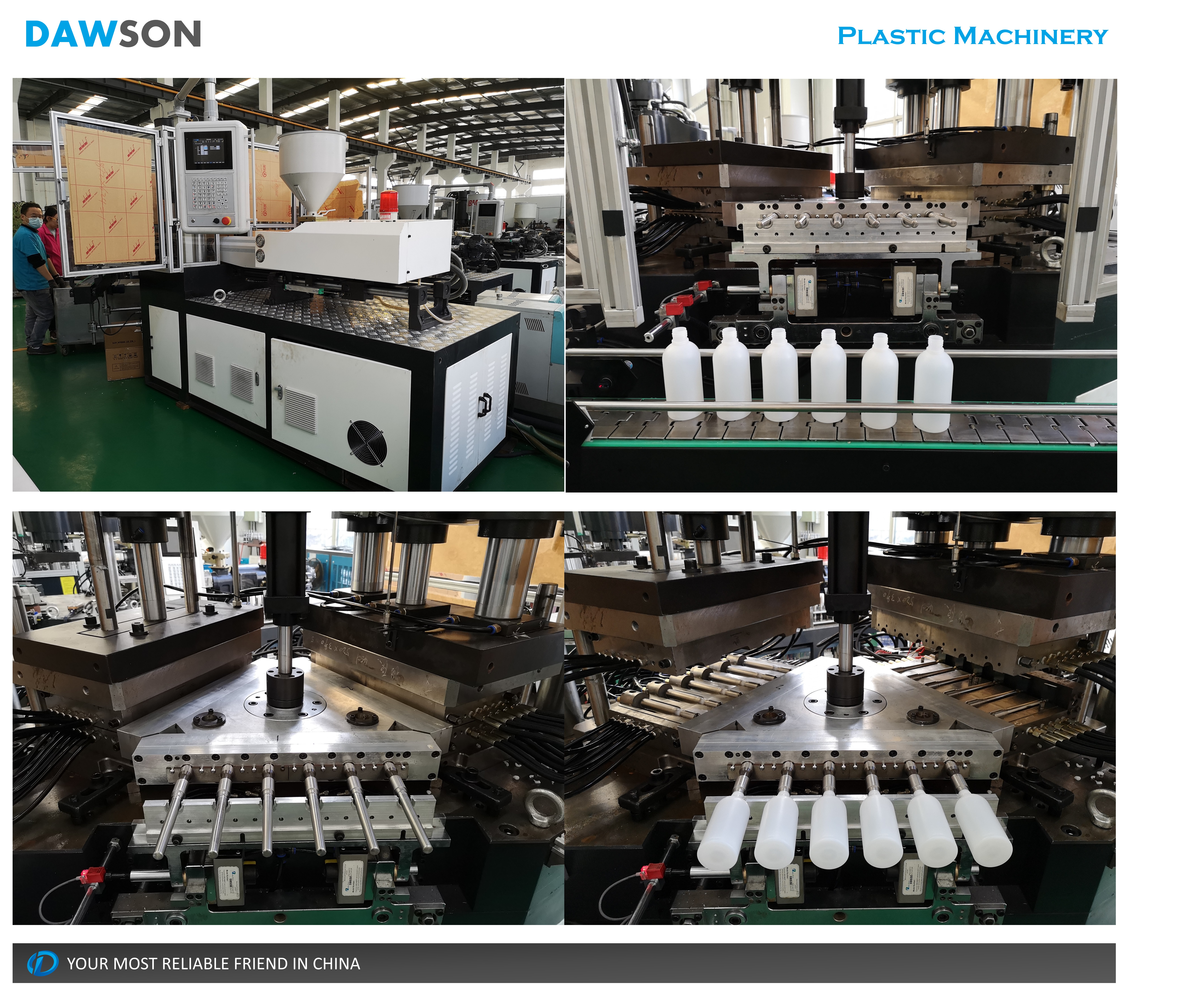

Injection blow molding is a kind of blow molding method which combines injection molding with blow molding. Firstly, the mold with bottom is produced by injection molding, and then the mold is transferred to the blow mold for blow molding.
It is suitable for processing large quantities of 5ml to 1L small plastic containers, such as cosmetics, daily necessities, medicine and food packaging bottles.
DAWSON MACHINERY & MOULD GROUP
Our customers are all around the world.
Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....
| Item | Unit | Data |
| Injection system | Screw Diameter | mm | 50 |
| Max. Theoretical injection capacity | G | 314 |
| Heating capacity | KW | 10 |
| No. of heating area | Qty | 3 |
| Clamping & blowing system | Clamping force of injection | kn | 650 |
| Clamping force of blowing | kn | 89 |
| Opening stroke of mold platen | mm | 140 |
| Max. Platen size (L×W) | mm | 740×390 |
| Min. Mold thickness (H) | mm | 280 |
| Heating capacity of mould | KW | 5.0 |
| Product dimension range | Suitable bottle range | ml | 5-800 |
| Max. bottle height | mm | ≤200 |
| Max. Dia. of bottle | mm | ≤80 |
| Hydraulic driving system | Motor power | KW | 17 |
| hydraulic pressure | Mpa | 14 |
| Pneumatic system | Min. Air pressure | Mpa | 1.0 |
| Discharge rate of compressed air | M3/mm | ≥0.8 |
| Cooling system | Water flowage | M3/h | 4 |
| | Total rated power with mold heating | KW | 45 |
| Machine information | Dimension | M | 4×1.28×2.35 |
| machine weight | Ton | 7.5
|
Feature
* Excellent plasticizing unit
* Bridge clamping unit for synchronism mould open/close, cycle time less
* Servo system can save 35 to 40% energy compared to normal system
* Servo rotary, precise, long using time, easy maintenance, save energy.
* Optional injection with all-electric way, replacing hydraulic way * CE certificate
Configuration of Injection Blow Molding Machine
* Oil pump and hydraulic valve (Directional Valves, Power saving valves, Pilot operated check modular valves, and Throttle check modular valves): YUKEN brand Ex JAPAN.
* Pneumatic valve connector: FESTO Ex Germany.
* Oil seal: VALQUA brand Ex JAPAN.
* Controlling system: Act Technologies
* Electronic Rulers: Italy GEFRAN
* Molded case circuit breaker, contactor, Thermal overload relay: SCHEIDER brand Ex FRANCE.
