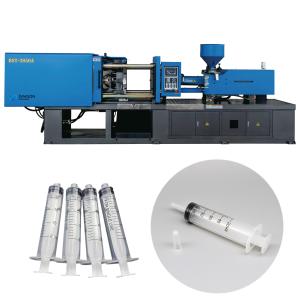

Vaccine Syringe Injection Molding Machine 40.5 KW Preventive 190 Mpa

Name: Vaccine Syringe Injection Molding Machine 405 KW Preventive 190 Mpa
Brand: DAWSON
Price: 20800 USD

China Vaccine Syringe Injection Molding Machine 40.5 KW Preventive 190 Mpa wholesale

Brand Name : DAWSON

Model Number : BST-2600

Certification : CE

Place of Origin : CHINE

MOQ : 1 piece

Price : USD 20800~ 40800 /pcs

Payment Terms : L/C, T/T

Supply Ability : 25 pieces per month

Delivery Time : 45-65 days

Packaging Details : wooden

Injection Rate (g/s) : 215 g/s

Power (kW) : 40.5 kW

Marketing Type : Ordinary Product

Injection pressure : 178-190 Mpa

Toggle stroke : 539MM

Contact Now

DAWSON MACHINERY & MOULD GROUP

Injection Molding Machine BST-2600
specialized for making PET preforms , caps , pails, buckets, jars, covers, lids. Special screw for PET products, all machine adapt latest Taiwan control system, Japan YUKEN hydraulic valve for highest quality standard and machine performance. We also able to provide mould designing and manufacturing to help you build up all kinds of plastic items manufacturing.
Technical Parameters
 	 			Parameters
 			BST-1800
 			BST-2050
 			BST-2300
 			BST-2600

 			Screw diameter
 			mm
 			48
 			48
 			52
 			56

 			Theoretical Shot weight
 			CM3
 			420
 			525
 			658
 			770

 			Shot weight
 			gram
 			378
 			472
 			592
 			690

 			Clamping force
 			KN
 			1080
 			2050
 			2300
 			2600

 			Toggle stroke
 			mm
 			440
 			445
 			480
 			530

 			Ejector stroke
 			mm
 			155
 			155
 			155
 			160

 			Space between tie bars
 			mm
 			480*460
 			490*464
 			510*510
 			554*554

 			Mould thickness
 			mm
 			180-470
 			190-470
 			200-510
 			200-550

 			Machine size
 			m
 			5.3*1.6*1.75
 			5.4*1.6*1.75
 			5.7*1.8*2.0
 			6.1*1.7*1.8

 			Machine weight
 			ton
 			5.5
 			6
 			6.5
 			8


Standard Feature
 	 			Injection Molding Machine Standard Feature

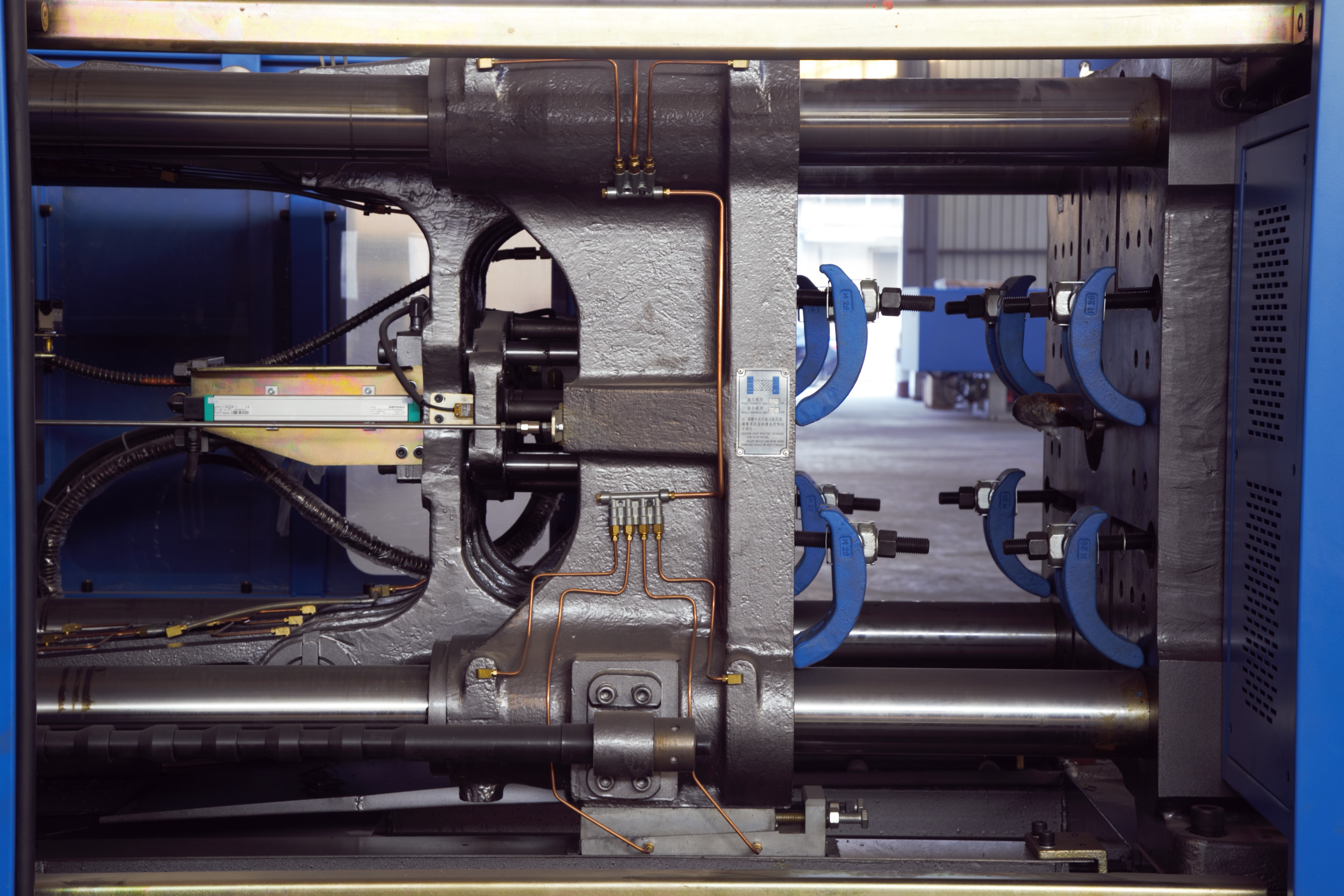

 			CLAMPING UNIT

 			1. New type 5-point toggle device with the advantage of stable movement curve and gentle shock
 			2. High-quality mold platen with enough intensity to ensure no out of shape if high-pressure clamping
 			3. Hard chrome plated high tensile strength tie bars made of superior alloy with a good wear and corrosion resistance
 			ability
 			4. Wear-resistant guide for moving platen
 			5. Transducer control clamping stroke
 			6. Many step controls for speed and pressure of clamping and opening
 			7. Ejection device offer dwell, single, more, vibration function
 			8. Differential high-speed clamping
 			9. Low pressure mold protection function
 			10. Hydraulic mold height adjustment derived by gear with rough and fine operation
 			11. Mechanical and electrical dual safety interlock
 			12. Automatic centralized lubrication system with far pressure detector

 			HYDRAULIC UNIT

 			1. Proportional pressure and flow control with the advantage of fine adjustment and high precision
 			2. Know-how manifold design, compact, reasonable and fast respond
 			3. Imported world famous hydraulic valves
 			4. Imported world famous hydraulic sealing rings
 			5. Import technology hydraulic hose and fittings
 			6. Low noise hydraulic system
 			7. Oil tank with inner stainless-steel container
 			8. Precision oil filter
 			9. Oil cooler

 			CONTROL UNIT

 			1. 1. The computer is imported from Industry family. The LCD displaying screen with high clarity has Chinese and English
 			language to display
 			2. World famous electrical components
 			3. Close-loop PID temperature control with the advantage of high precision.
 			4. Deviation preset between high and low temperature. And break control for temperature sensor.
 			5. Alarming system in case of cold start and no material in hopper
 			6. Transducer control the injection and opening stroke to accuracy of ±0.05mm
 			7. 99 steps speed control for increasing and reducing to suit for different technology demands
 			8. Self-diagnostic and trouble alarm function
 			9. Parameters lock function to avoid being changed
 			10. 100 sets of production parameters can be stored into the computer memorial software
 			11. Machine can record the quantity of products and automatically stop if up to the required quantity.
 			12. Emergency stop device
 			13. Alarm lamp

 			SPARE PARTS

 			█ Operation Manual █ Normal hopper
 			█ Level pad █ Heater band █ Mold clip
