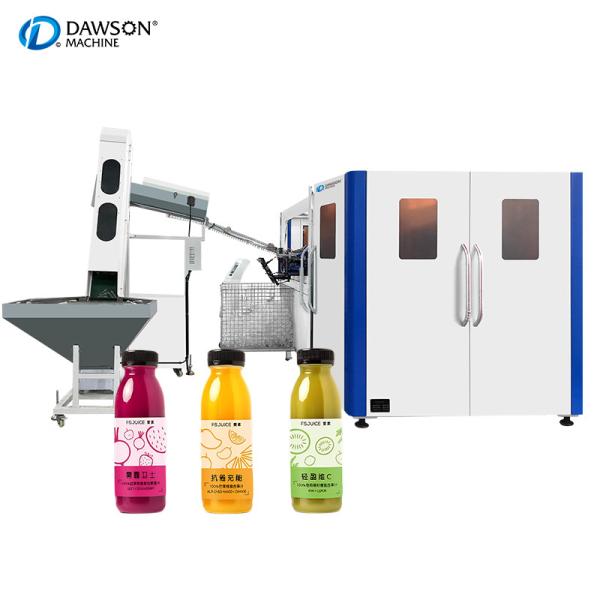

Adopt touch - type color HMI systems as to operate. Can blow maximum 10 liter bottles. Maximum production speed can be 1500 bottles/hour.
| TechnicalParameters | ZPA-1L-2 | ZPA-2L-2 | ZPA-1L-4 | ZPA-2L-4 | ZPA-1L-6 | ZPA-2L-6 |
| | Cavity | 2 | 2 | 4 | 4 | 6 | 6 |
| Host Machine Parameter | Clamping Force | 35000 | 45000 | 48000 | 48000 | 56000 | 56000 |
| Moild Route | 90 | 110 | 90 | 125 | 90 | 125 |
| Stretching Rod Route | 300 | 400 | 260 | 330 | 260 | 330 |
| Boctomn llold Route | 50 | 50 | 50 | 50 | 50 | 50 |
| Bottle Spacing | 76.2 | 114.3 | 76.2 | 114.3 | 76.2 | 114.3 |
| Bottie Preform Number | 66 | 52 | 95 | 82 | 106 | 92 |
| Max Boxtle Mouth Diameter | Max Capacty | 600 | 1500 | 600 | 1500 | 600 | 1500 |
| Max Boetie Boby Height | 260 | 330 | 260 | 330 | 260 | 330 |
| Max Bottie Body Diameter | 68 | 105 | 68 | 105 | 68 | 105 |
| MaxBoetie Preformn Height | 100 | 140 | 100 | 140 | 100 | 140 |
| Max Boxtle Mouth Diameter | 38 | 38 | 38 | 38 | 38 | 38 |
| EleetricalParameter | Cаpacty | 2500 | 2000 | 4500 | 4000 | 7200 | 6000 |
| Heating Oven Quantity | 2*2 | 4*4 | 4*4 | 5*5 | 4*4 | 5*8 |
| Heating Lamp Quantity | 2*8 | 4*8 | 4*7 | 5*9 | 4*8 | 5*9 |
| Heating Confguration Power | 32 | 48 | 42 | 72 | 64 | 90 |
| Total Power Capedity | 36 | 50 | 45 | 80 | 69.5 | 100 |
| Voltage | 380V50HZ | 380V50HZ | 380V50HZ | 380V50HZ | 380V50HZ | 380V50HZ |
| Air Source Parameter | Worling Pressure | 0.7-0.9 | 0.7-0.9 | 0.7-0.9 | 0.7-0.9 | 0.7-0.9 |
| Blowing Pressure | 2.5-3.0 | 2.5-3.0 | 2.5-3.0 | 2.5-3.0 | 2.5-3.0 |
| Air Capacitly Consumption | 2.4/30 | 2.4/30 | 3.6/30 | 3.6/30 | 5.0/30 |
| Total Powwer | 30 | 30 | 45 | 45 | 60 |
| Cooling ChilerParameter | Ternperature | 9-13 | 9-13 | 9-13 | 9-13 | 9-13 |
| Pressure | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 |
| Rated Powwer | 3 | 3 | 5 | 5 | 5 |
| Dimenson | Host Mlachine Size | 2700*1800*2200 | 3300*1800*2200 | 3900*1800*2200 | 4800*2200*2200 | 4200*2100*2200 |
| Weight | 2200 | 2500 | 3500 | 4500 | 6000 |
1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system.
2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety.
3. suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs.
4. manual and automatic methods of operation, human-machine interface control, simple operation.
5. servo transmission system, high positioning accuracy, fast speed stability and good reliability.
6. less than 0.2% scrap rate for finished bottle .
DAWSON MACHINE & MOULD GROUP
located in Zhangjiagang city, have more than 18 years' experience in the field of plastic machinery,
injection molding machine, blow molding machine, PET blow molding machine, injection blow molding machine, during the past 18 years, we always force our energy into new areas of plastic machinery, plastic packaging machinery, to update the technology, to learn advanced experience, to confirm new theory and new design, we are forming a unique competitive advantage of our owns.
The machines from our company carry good quality and effective after-sales service, upon the market,
customers from more than 45 countries, we provide complete solution for your plastic industry
business, as well as all sorts of technical support & after-sale services!
Q: Can we visit your factory?
Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong International Airport. We can pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.
Q: How can we get the exact price of plastic machine?
Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with quotation.
Q: Do you provide any spare parts with machine?
Yes, we offer all necessary spare parts before shipment.(contact us for packing list )
Q: How about your after-sale service ?
We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist.
Q: What is the lead time?
For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)
Q: What is the warranty period for your machine ?
12 months warranty for components and technical support .
Q: Do you provide custom machines?
Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs.
Q: How can we install the machine when it arrives?
We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees.
Q: What's DAWSON's advantage?
DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipment for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time.
DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
